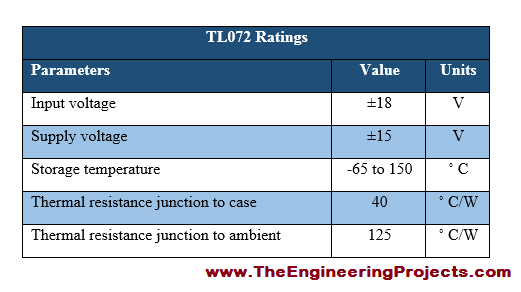

It means the amount of heat this IC can handle and when it reaches to 680mW its temperature will go to 150 degrees centigrade. The maximum input differential voltage of the IC is ☓0V. When operating the IC with a dual power supply the maximum voltage should not be more than ☑8V and with single power supply the max voltage should not be more than 36V. Safe Operating Guidelines / Absolute Maximum Ratings:Įach component has a limit and usage guidelines, operating a component above these limits can cause permanently damage the component or shorten its lifespan therefore it is also important to know about the absolute max ratings of each component before using it in your circuit or design. The operating voltage of the circuit is 9V DC. The figure below shows an audio preamplifier circuit using TL071 and a few other components. Other nearest possible replacements can be NE5534, TLE2071, TLE2072. If you can’t find the TL071 IC then you can also use other ICs of this family which are TL072 and TL074 and only you have to use their one internal opamp from either of these ICs.
Replacement, Equivalent, Or Alternative ICs / Part Numbers:
If that alphabet is “I” then its operating temperature will be -40☌ to 85☌, and it that alphabet is “M” then its operating temperature will be -55☌ to 125☌.Īdditionally, this IC is not limited to only audio preamplification tasks and can also be used in a wide variety of applications listed below. If the alphabet is “C” then its storage and operating temperature will be 0 ☌ to 70☌. The IC is also available in three different types according to the temperature range which can be determined with the first alphabet after its part number. Moreover, the IC also featured short circuit protection at it output, latch-up free, fast slew rate, low current consumption, low quiescent current more many more features which make it a robust device and also make it reliable to use in commercial equipment. The internal circuitry of the IC is designed to get low harmonic distortion and low noise which makes it ideal to use in audio preamplification circuits. The internal circuitry of the IC is consisting of 14 transistors, 2 JFETs, 11 resistors, 1 diode, 1 capacitor and 1 epi-FET. The chip is available in 8pin DIP and SO-8 packages. TL071 contains a single operational amplifier inside. TL07X also contains other dual and quad operational ICs which are TL072 and TL074. No Connection or no connection with the internal circuit of the IC. Non Inverting Input of IC's First Operational Amplifier Inverting Input of IC's First Operational Amplifier
